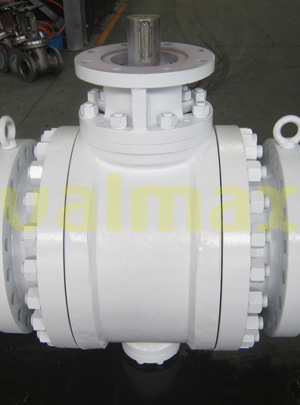

API 6D Forged Steel Ball Valves, ASTM A105

Valmax > Valves > Ball Valves > Trunnion Mounted Ball Valves > API 6D Forged Steel Ball Valves, ASTM A105

Short Description

Model No.: FSBVST 900LB -12 Clicks: 1519

Forged steel ball valves, 900LB, RF flange end, side entry trunnion mounted type, bolted bonnet, gear operator.
Model Size: 12".

Body/Bonnet: ASTM A105.
Ball: ASTM A105+ENP..
Seat: Devlon.
Stem: ASTM A105+ENP.
Face to face dimentision: 965mm.
Valve standard: API 6D.
Flange standard: ASME B16.5.
Sealing pressure test: 169 BAR.
Shell pressure test: 230 BAR.

Request a quote

Keywords: Flanged , Ball Valves , API 6D Ball Valves .

Previous: API 6D Hydraulic Actuated Ball Valves, Trunnion Mounted
Next: API 6D Cast Steel Trunnion Mounted Ball Valves 1500 LB

API 6D Forged Steel Ball Valves, ASTM A105 Key Specifications / Features

Key Features and Ranges:
- Design basis and product range: API 6D / API 608 / GB/T 12237.
- Face-to-face dimension: ASME B16.10 / GB/T 12221.
- Flanged ends: API605/ ASME B16.47 / GB/T 9113.
- Butt-welding ends: ASME B16.25 / GB/T 12224.
- Wall thickness: ASME B16.34.
- Fireproof test: API 607.
- Inspection and test: API 6D / API 598 JB/T 9092.
- Product range: 4" - 64", DN100 - DN1600.
- Materials of main parts: A105. LF2, F11, F22, F304, F316, F51.
- Seat materials: PTFE, RTFE or metal hard seal.
