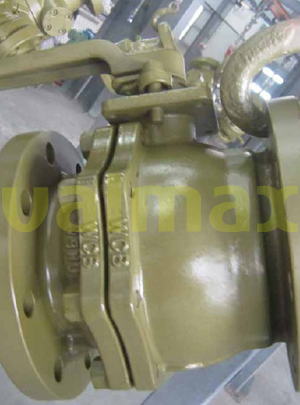

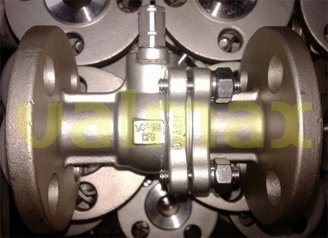

Valmax Floating Ball Valve introduction:
The Floating ball valves are commonly used valves. It is named due to the fact that the ball and stem pass through the axis of flow channel. The Floating ball valves of Valmax Valve Co., Ltd. include low platform type and high platform type. The low platform type ball valves are suitable for manual operation and electric or pneumatic actuator can also be additionally installed if necessary. For the high platform type products, the electric or pneumatic actuator can be installed without extra yoke.
China floating ball valve manufacturer Valmax supplies industrial API 6D, BS 5351 cast steel floating ball valves, forged steel floating ball valves.
Valmax Floating Ball Valve Design Features:
- Design of fireproof structure and obtaining the certification
- ISO5211 platform design is adopted for the convenuence of installing the actuator
- Antistatic design between stem, body and ball
- Anti-blow-out stem design
- The pressure balancing hole is provided on the steel ball
- The low platform products adopt packing gland type middle shaft
- The double-layer stem packing and double butterfly spring structure of the high platform products play a self-compensation function for the middle shaft seal.
- The body is provided with a device for cleaning the valve cavity.
- According to the structural forms, the floating ball valves include one-piece type, two-piece type and three-piece type flanged ball valves, wafer flanged ball valves, and some butt-welding and socket welding ball valves.
