Short Description

Model No.: CSBVSF 300-6 Clicks: 1529

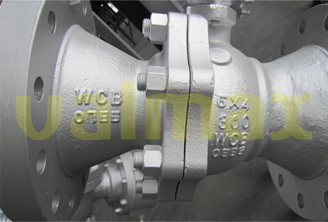

Cast Steel Reduce Port Ball Valve, side entry, floating ball, Reduce Port, PTFE seat, RF flange end, 2pcs valve body.
Model Size: 6", 300 LB.

Body/Bonnet: ASTM A216 WCB.
Ball: ASTM A182 F316.
Seat: PTFE.
Stem: ASTM A182 F316.
Face to face dimension: 403 mm.
Valve standard: API 6D, ISO 17292, BS 5351.
Flange standard: ASME B16.5.
Sealing pressure test: 57 BAR.
Shell pressure test: 78 BAR.
Others: NACE MR-01-75, Lever Lock.

Request a quote

Keywords: Ball Valves , API 6D Ball Valves .

Previous: Cast Steel Ball Valve, 2-PC, Side Entry Floating, 150 LB
Next: API 6D T Type Three Way Floating Ball Valves, 150 LB

Reduce Port Float Ball Valve, 2-PC, PTFE seat, 300 LB Key Specifications / Features

Reduce Port: 6 Inch reduce to 4 Inch (6 X 4).

- Design basis: ASME B16.34, API 608, DIN 3357, EN 12516, GB/T 1224, GB/T 12237.
- Face-to-face dimension: ASME B16.10, DIN 3202, GB/T 12221.
- Flanged ends: ASME B16.5, DIN 2501, GB/T 9113.1.
- Butt-welding ends: ASME B16.25.
- Socket welding ends: ASME B16.11.
- Wall thickness: ASME B16.34, EN 12516.
- Fireproof: API 607, ISO 10479.
- Inspection and test: API 6D, API 598, EN 12266, GB/T 13927.
- Product range: 1/2" - 10", DN15 - DN250.
- Materials of main parts: WCB, CF8, CF8M, WC6, WC.
- Seat materials: PTFE , RTFE or metal hard seal.
