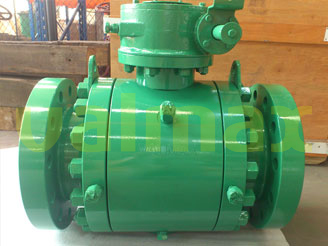

API 6D Full Port Ball Valves, ASTM A182 A105, 600 LB

Valmax > Valves > Ball Valves > Trunnion Mounted Ball Valves > API 6D Full Port Ball Valves, ASTM A182 A105, 600 LB

Short Description

Model No.: FSBVST 600LB-8 Clicks: 1520

Full Port Ball valve, RF flange end, side entry trunnion mounted type, full port, bolted bonnet, gear operation.
Model: 8", 600LB.
Body/Bonnet: ASTM A182 A105.
Ball: ASTM A182 A105.
Seat: DEVLON.
Stem: ASTM A182 A105.
Valve standard: API 6D.
Flange standard: ASME B16.5.

Request a quote

Keywords: Ball Valves , API 6D Ball Valves .

Previous: API 6D Carbon Steel Ball Valve, ASTM A182 A105, 2500 LB
Next: 3-Piece Reduce Port Trunnion Ball Valves, 600 LB

API 6D Full Port Ball Valves, ASTM A182 A105, 600 LB Key Specifications / Features

- Design basis and product range: API6D, API608, GB/T 12237.
- Face-to-face dimension: ASME B16.10, GB/T 12221.
- Flanged ends: API605, ASME B16.47, GB/T 9113.
- Butt-welding ends: ASME B16.25, GB/T 12224.
- Wall thickness: ASME B16.34.
- Fireproof test: API 607.
- Inspection and test: API 6D, API 598, JB/T 9092.
- Product range: 4" - 64", DN 100 - DN 1600.
- Materials of main parts: A105 LF2, F11, F22, F304, F316, F51.
- Seat materials: PTFE, RTFE or metal hard seal.

API 6D Full Port Ball Valves, ASTM A182 A105, 600 LB

API 6D Full Port Ball Valves, ASTM A182 A105, 600 LB Key Specifications / Features
